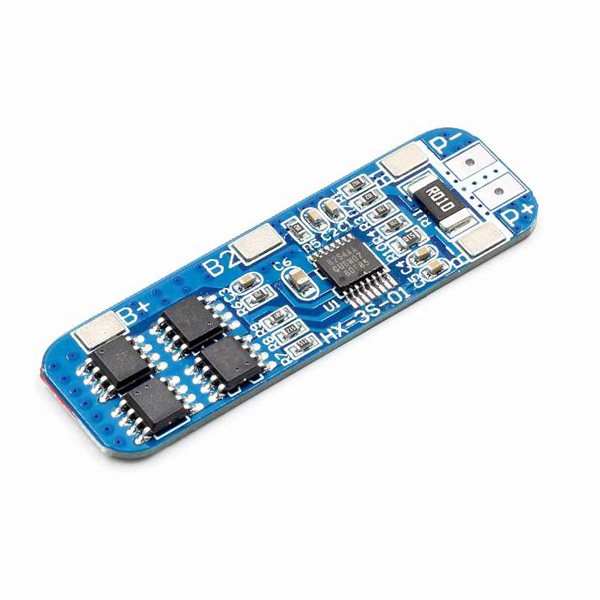

3 String 12V 10A 18650 Lithium Battery Protection Board 11.1V Current Peak 10A Over-Current Protecti

3S 12V 18650 Lithium Battery Protection Board Current Peak 10A Overcurrent Protection

Specification:

Overvoltage range: 4.25 ~ 4.35v ± 0.05v
Over-discharge voltage range: 2.3 ~ 3.0v±0.05v
Maximum operating current: 5 ~ 8A
Maximum transient current: 9 ~ 10A
Quiescent current: less than 6uA
Internal resistance: less than 60m
Working temperature: 40 +50 C
Effective life: more than 30000h
Short circuit protection: Yes, delayed self-recovery
Size: 50mm x 16mm x 1.2mm (LxWxH)

Notes:

Strictly according to the diagram wiring: 0V(B-) 3.7V(B1) 7.4V(B2) 11.1V(B+), Do not deliberately short circuit.
After the wire is connected, needs to charge the batteries first (charge voltage 12.6V), then have output.
When the battery is connected in series with 3 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
Do not mix the good battery and the battery.
It will be better the capacity of the battery internal resistance is closer.
